Product type:TFT Display
Show contents:1200x1920

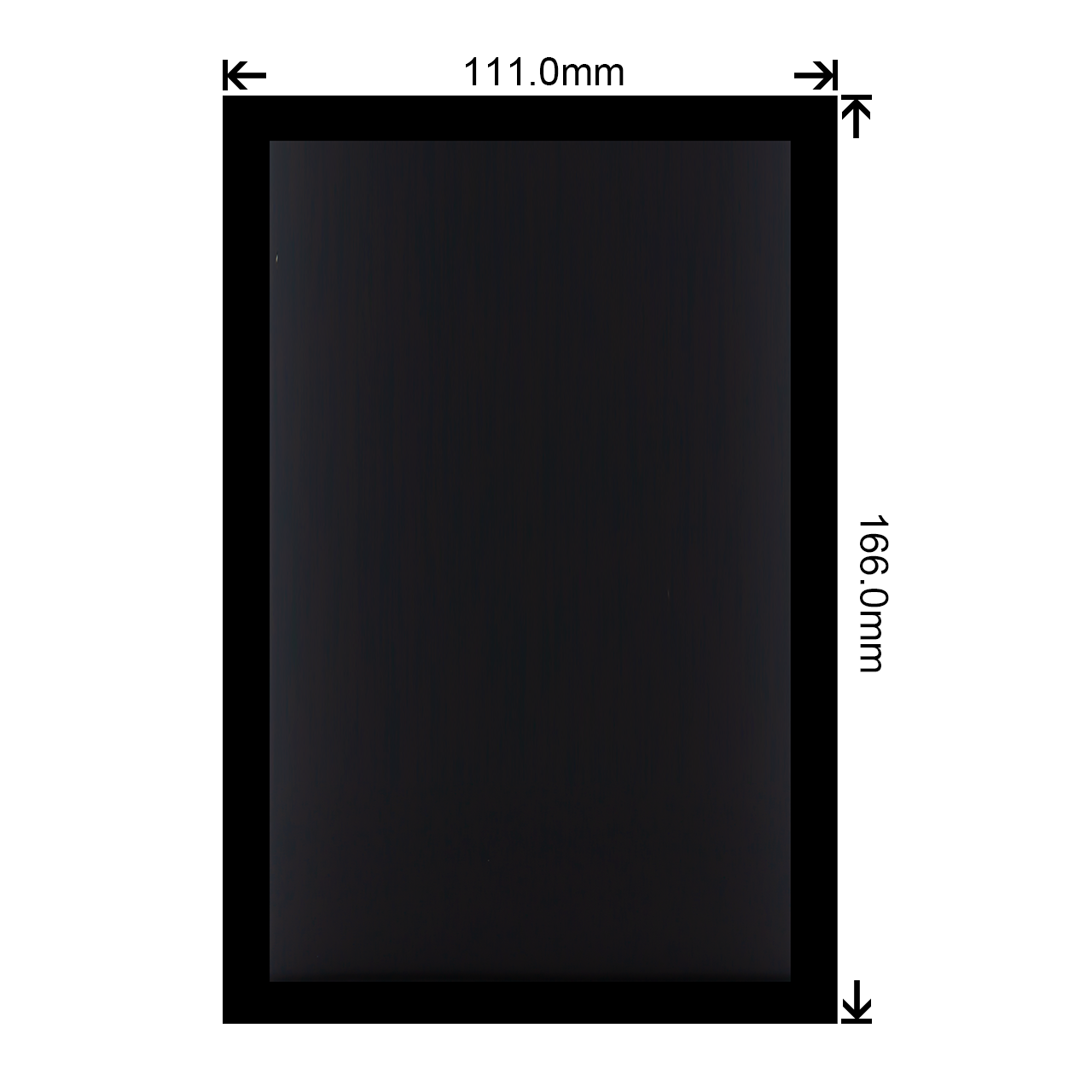

Outline size(mm) :111.0x166.0x3.3
Size of View Window(mm):7.0
Display size(mm) :7.0
Effective size(mm):94.5x151.2
Product application:TFT LCD
Visual angle:IPS
Backlight type or brightness:2000cd/m2
Connection PIN Number:FPC-40PIN
Interface mode:MIPI
Special instructions:Anti-static ESD 8KV
Working temperature:-20~70℃
Power supply voltage:+3.3V
Driver chip model:HX8279
This High Brightness TFT LCD module is engineered to deliver exceptional visual performance under the most demanding lighting conditions. Designed with a robust IPS panel, it offers a full viewing angle, ensuring consistent, vivid color reproduction and sharp imagery from any perspective. Its core advantage lies in the extreme luminous intensity, making this High Brightness TFT LCD perfectly suited for applications where superior readability is critical, such as instrumentation and portable electronic devices used outdoors or in bright indoor environments.
The product features a modern MIPI interface for high-speed data transmission and is driven by a reliable control chip. Built to endure harsh conditions, it operates effectively across a wide temperature range and incorporates significant ESD protection. The compact design, with a generous active display area relative to its form factor, provides excellent space efficiency for integration.
Ultimately, this display stands out for its unparalleled luminance. The High Brightness TFT LCD ensures clear, vibrant, and power-efficient visuals, guaranteeing optimal visibility and reliability where it matters most. This High Brightness TFT LCD is the definitive solution for applications requiring uncompromising display performance.
